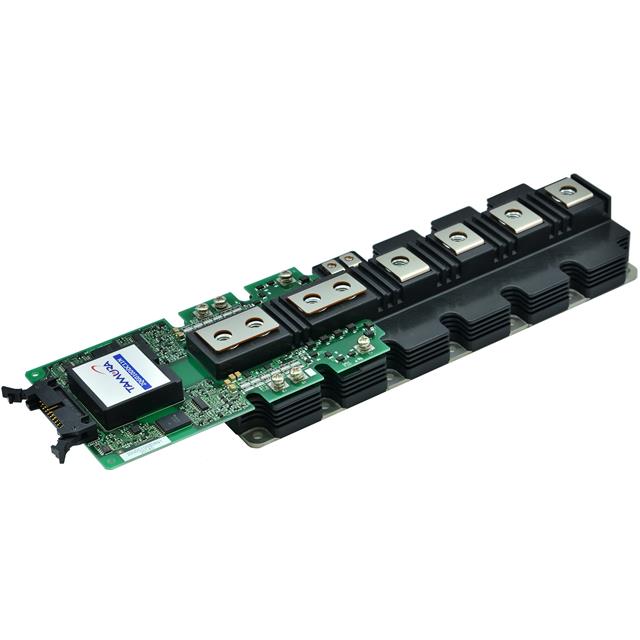

2QG010DDC11N
IC GATE DRVR HALF-BRIDGE MODULE
Property Bar
Number
SC-2QG010-70MFPT
manufacturer:
Tamura
MPN#
SC-2QG010-70MFPT
RoHS Compliance:
Full
Sample:
Get Free Sample
specifications
    Part Status
    Active
    Number of Outputs
    2
    Package / Case
    Chassis Mount
    Operating Temperature
    -40°C ~ 85°C
    Channel Type
    Independent
    Package / Case
    Module
    Input Type
    Non-Inverting
    Programmable
    Not Verified
    Topology
    Half-Bridge
    Type
    IGBT
    Voltage - Supply
    13V ~ 28V
    Switch Time (Ton, Toff) (Max)
    500ns, 500ns
    Logic Voltage - VIL, VIH
    0.5V, 3.3V
    Current - Peak Output (Source, Sink)
    43A, 43A
Substitute Parts
    LT1162CN
    Analog Devices Inc.
    IC GATE DRVR HALF-BRIDGE 24DIP
    quantity 1
    price N/A
    LT1162IN
    Analog Devices Inc.
    IC GATE DRVR HALF-BRIDGE 24DIP
    quantity 1
    price N/A
    ICL7667CPA
    Renesas Electronics Corporation
    IC GATE DRVR HALF-BRIDGE 8DIP
    quantity 1
    price N/A
    TC429CPA
    Microchip Technology
    IC GATE DRVR LOW-SIDE 8DIP
    quantity 1
    price USD $2.81
    TC4421CPA
    Microchip Technology
    IC GATE DRVR LOW-SIDE 8DIP
    quantity 1
    price USD $4.17
inventory 1680
minimum
1
package
Tray
delivery time
Shipment within 48 hours
price
quantity
unit price
price
1
213.92
213.92
20
202.5
4050
