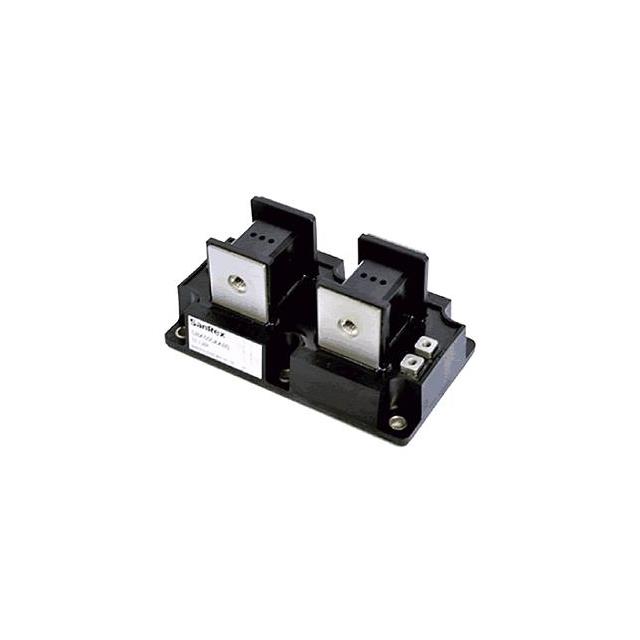

SBB500AA160
SCR MODULE 1.6KV 785A MODULE
PDF
Property Bar
Number
SC-SBB500-XP5Z2D
manufacturer:
SanRex Corporation
MPN#
SC-SBB500-XP5Z2D
RoHS Compliance:
Full
Sample:
Get Free Sample
specifications
    Part Status
    Active
    Package / Case
    Chassis Mount
    Operating Temperature
    -40°C ~ 125°C (TJ)
    Package / Case
    Module
    Maximum DC Volts
    3 V
    Current - Output 3
    200 mA
    Voltage - Isolation
    1.6 kV
    Current - Output 1
    500 A
    Mounting Type
    Chassis Mount
    Number of SCRs, Diodes
    1 SCR, 1 Diode
    Structure
    Independent - SCR/Diode
    Current - On State (It (RMS)) (Max)
    785 A
    Current - Non Rep. Surge 50, 60Hz (Itsm)
    9100A, 10000A
    Operating Temperature
    -40°C ~ 125°C (TJ)
    Package / Case
    Module
    Voltage - Gate Trigger (Vgt) (Max)
    3 V
    Current - Gate Trigger (Igt) (Max)
    200 mA
    Number of SCRs, Diodes
    1 SCR, 1 Diode
    Voltage - Off State
    1.6 kV
    Current - On State (It (AV)) (Max)
    500 A
    Current - Non Rep. Surge 50, 60Hz (Itsm)
    9100A, 10000A
    Current - On State (It (RMS)) (Max)
    785 A
    Structure
    Independent - SCR/Diode
Document
Substitute Parts
    MCC95-16IO8B
    IXYS
    SCR MODULE 1.6KV 180A TO-240AA
    quantity 1
    price USD $42.00
    MCC95-16IO1B
    IXYS
    SCR MODULE 1.6KV 180A TO-240AA
    quantity 1
    price USD $43.23
    IRKT41/12A
    Vishay General Semiconductor - Diodes Division
    SCR MODULE 1.2KV 100A ADD-A-PAK
    quantity 1
    price N/A
    MCC162-16IO1
    IXYS
    SCR MODULE 1.6KV 300A Y4-M6
    quantity 1
    price USD $72.25
    MCC56-12IO8B
    IXYS
    SCR MODULE 1.2KV 100A TO-240AA
    quantity 1
    price USD $31.20
inventory 1600
minimum
2
package
Tray
delivery time
Shipment within 48 hours
price
quantity
unit price
price
2
303.65
607.3
