PJQ4548P-AU_R2_002A1
40V N-CHANNEL ENHANCEMENT MODE M
PDF
Property Bar
Number
SC-PJQ454-L52TG8
manufacturer:
Panjit International Inc.
MPN#
SC-PJQ454-L52TG8
RoHS Compliance:
Full
Sample:
Get Free Sample
specifications
    Part Status
    Active
    No Load Power Consumption
    -
    Package / Case
    Surface Mount
    Fuse Type
    Automotive
    Technology
    MOSFET (Metal Oxide)
    Vgs (Max)
    ±20V
    FET Type
    N-Channel
    Qualification
    AEC-Q101
    Supplier Device Package
    40 V
    Drive Voltage (Max Rds On, Min Rds On)
    4.5V, 10V
    Operating Temperature
    -55°C ~ 175°C (TJ)
    Package / Case

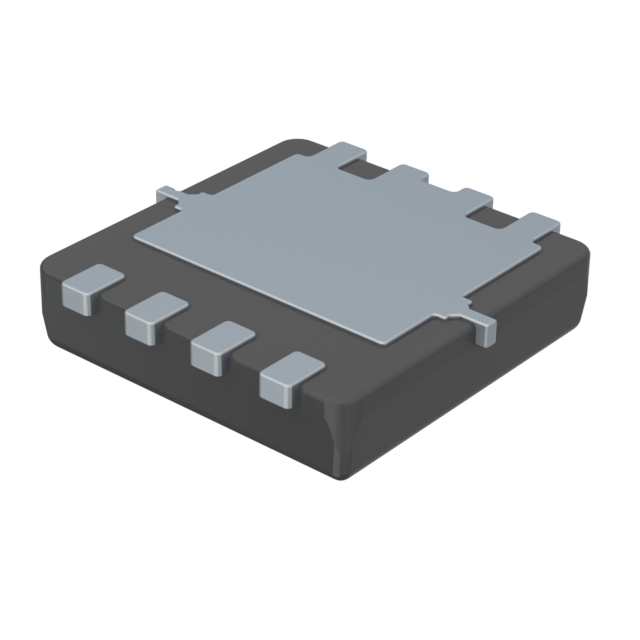

    8-PowerVDFN
    Vgs(th) (Max) @ Id
    2.3V @ 50µA
    Gate Charge (Qg) (Max) @ Vgs
    13 nC @ 10 V
    Supplier Device Package
    DFN3333-8
    Rds On (Max) @ Id, Vgs
    9.1mOhm @ 10A, 10V
    Power Dissipation (Max)
    2.5W (Ta), 30W (Tc)
    Input Capacitance (Ciss) (Max) @ Vds
    778 pF @ 25 V
    Current - Continuous Drain (Id) @ 25°C
    12.4A (Ta), 43A (Tc)
Document
Substitute Parts
    IRF510
    Vishay Siliconix
    MOSFET N-CH 100V 5.6A TO220AB
    quantity 1
    price N/A
    IRF9510
    Vishay Siliconix
    MOSFET P-CH 100V 4A TO220AB
    quantity 1
    price N/A
    IRFD9220
    Vishay Siliconix
    MOSFET P-CH 200V 560MA 4DIP
    quantity 1
    price N/A
    IRF840
    Vishay Siliconix
    MOSFET N-CH 500V 8A TO220AB
    quantity 1
    price N/A
    IRFD110
    Vishay Siliconix
    MOSFET N-CH 100V 1A 4DIP
    quantity 1
    price N/A
inventory 3225
minimum
1
package
Cut Tape (CT)
delivery time
Shipment within 48 hours
price
quantity
unit price
price
1
1.03
1.03
10
0.69
6.9
100
0.46
46
500
0.36
180
1000
0.33
330
Please send an inquiry form, we will reply immediately
